Project : Immedion Data Center Greenville, SC

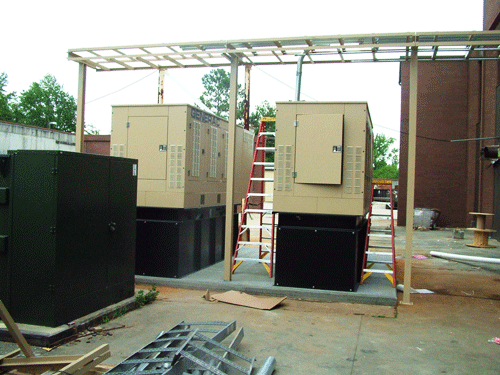

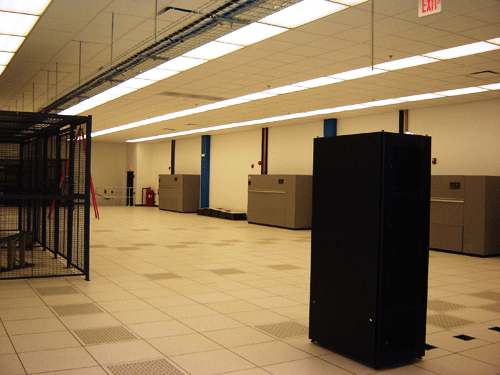

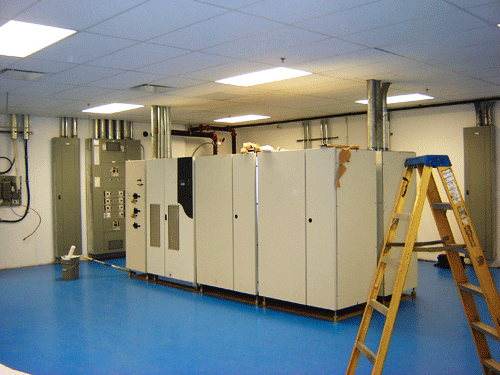

New construction in an existing bare shell in an existing building of a 20,000 square foot Data Center and offices. Added one 600 KW generator, and two 300 KW generators for backup to the new UPS system. Included were two auto transfer switches (ATS). Also added two 225 KVA UPS systems, two 500 KVA UPS systems, and two services to the space, (one 1200 Amp and one 1600 Amp). Harrison Electrical Inc. also installed two 125 KVA and two 150 KVA power distribution units (PSU) in the data center to serve the equipment in the space. The data center had seven Liebert units to provide cooling. A complete grounding system was installed below the raised floor. Feeders (1200 Amp and 1600 Amp) were installed approximated three hundred feet from the three generators to the UPS room. Lighting, general receptacles, and a fire alarm system were also installed.
